FIC A450 (Gericom Gigabook A450)

CPU	Sockel 370, Micro-PGA2, Intel mobile P3, nonSpeedstep CPU, Speedstep CPU
Chipsatz	BX, bis 100 MHz FSB
VGA	ATI Rage Mobility M1 AGP, 4 oder 8 MB
Ram	max. 2 x 256 MB SO-SDRAM, PC 100 oder PC 133 (16 Chips)
Sound	ESS Solo, PCI
Touchpad	Alps
Harddisk	max. 128 GB, 2,5 Zoll IDE (40-Pin)
Slimline	CD, CDRW, DVD, DVDRW, IDE, nur Master (1)

(1) Master durch Firmwareupdate des Laufwerks oder Lötverbindung zwischen Pin 45 und 47

Treiber:

Windows 98
Windows NT 4
Windows 2000
Windows XP
PHDISK

Handbücher:

Benutzerhandbuch
Servicehandbuch

Jumper:

S6 on #1#2#3#4#5#6 off

S5 on #1#2#3#4 off

S4 on #1#2#3#4#5#6 off

S4 + S5
Non-Speedstep CPU, core voltage setting

SW5 Pos#1	SW5 Pos#2	SW5 Pos#3	SW5 Pos#4	SW4 Pos#1	vcore low
off	off	off	off	on	0,0
on	off	off	off	on	1,3
off	on	off	off	on	1,35
on	on	off	off	on	1,4
off	off	on	off	on	1,45
on	off	on	off	on	1,5
off	on	on	off	on	1,55
on	on	on	off	on	1,6
off	off	off	on	on	1,65
on	off	off	on	on	1,7
off	on	off	on	on	1,75
on	on	off	on	on	1,8
off	off	on	on	on	1,85
on	off	on	on	on	1,9
off	on	on	on	on	1,95
on	on	on	on	on	2,0

SW4 Pos#2 Pos#3 Pos#4 Pos#5 Pos#5 not used

S4 + S5
Speedstep CPU, low core voltage setting

SW5 Pos#1	SW5 Pos#2	SW5 Pos#3	SW5 Pos#4	SW4 Pos#1	vcore low
off	off	off	off	on	0,0
on	off	off	off	on	1,3
off	on	off	off	on	1,35
on	on	off	off	on	1,4
off	off	on	off	on	1,45
on	off	on	off	on	1,5
off	on	on	off	on	1,55
on	on	on	off	on	1,6
off	off	off	on	on	1,65
on	off	off	on	on	1,7
off	on	off	on	on	1,75
on	on	off	on	on	1,8
off	off	on	on	on	1,85
on	off	on	on	on	1,9
off	on	on	on	on	1,95
on	on	on	on	on	2,0

S4
Speedstep CPU, high core voltage setting

Pos#2	Pos#3	Pos#4	Pos#5	Pos#6	vcore high
off	off	off	off	on	0,0
on	off	off	off	on	1,3
off	on	off	off	on	1,35
on	on	off	off	on	1,4
off	off	on	off	on	1,45
on	off	on	off	on	1,5
off	on	on	off	on	1,55
on	on	on	off	on	1,6
off	off	off	on	on	1,65
on	off	off	on	on	1,7
off	on	off	on	on	1,75
on	on	off	on	on	1,8
off	off	on	on	on	1,85
on	off	on	on	on	1,9
off	on	on	on	on	1,95
on	on	on	on	on	2,0

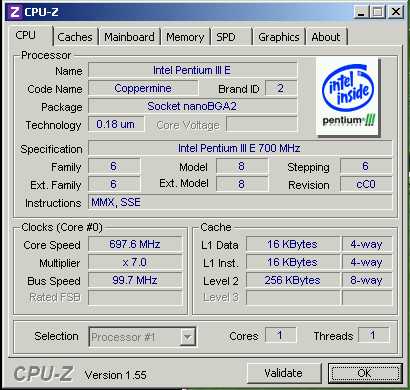

Das A450 läuft mit einer CPU bis 700 MHz stabil. Bei CPUs mit 900 Mhz und 1000 MHz kommt es nach 3 - 7 Minuten zu einem Reset. Das Problem scheint nicht die Abwärme bzw. die Temperaturentwicklung zu sein, sondern eher ein Problem mit dem Spannungswandler. Der FSB ist durch den Chipsatz (BX) auf 100 MHz begrenzt.

S6
keyboard type

Pos#4	Pos#5	type
off	off	US
on	off	JP
off	on	reserved
on	on	UK

Pos#6 on = Clear CMOS

BIOS:

BIOS Version C
BIOS Version D
BIOS Version E
BIOS Version G
BIOS Version J
